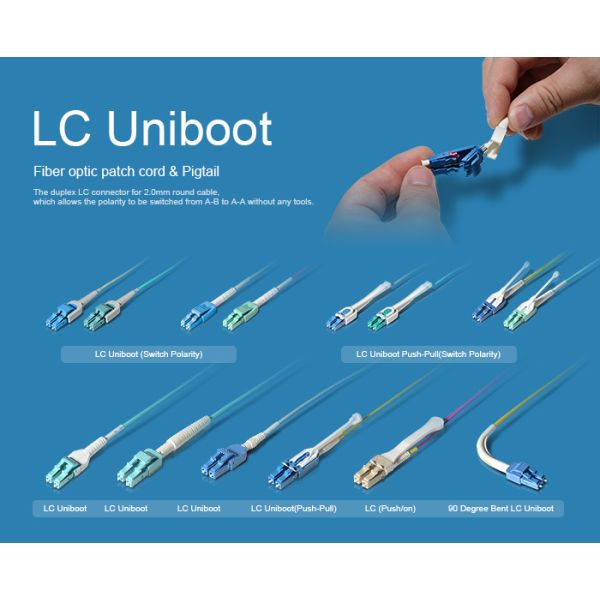

LSZH Switch Polarity Duplex LC Uniboot For Fiber Optic Patch Cord

Name: LSZH Switch Polarity Duplex LC Uniboot For Fiber Optic Patch Cord
Brand: DYS/OEM
Price: 1 USD

Buy cheap LSZH Switch Polarity Duplex LC Uniboot For Fiber Optic Patch Cord product

Brand Name : DYS/OEM

Model Number : LC Uniboot (Switch Polarity)

Certification : IS09001-2015.ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000/week

Delivery Time : in 3 days

Packaging Details : Individual Box or According to Customer's Request

Price : Negotiable

Inserion Loss : IL<0.25dB

Connector type : LC Uniboot for Fiber Optic patch cord

Fiber Type : Singlemode , Multimode

Return loss : ≥50dB(PC/UPC) ≥60dB(APC)

Operating Temp : -40 to +85 degree

Certifaction : RoHS,ISO9001

Diameter : 1.2mm,1.6mm,2.0mm,3.0mm

Jacket material : LSZH,PVC,OFRN,ORNP

Contact Now

LSZH Switch Polarity Duplex LC Uniboot For Fiber Optic Patch Cord

Application

1. Data Centers

2. Local Area Networks

3. High-Density Applications

4. Interconnects

5. Cross-connects

Features

1. Uniboot with a Single Housing

2. Unique Push-Pull Design and Function

3. Interchangeable polarity

4. Low insertion loss and added loss.

5. Height of attenuation.

6. High back loss, small volume, light weight.

7. End-face geometry and quality superior than IEC and Telcordia standards.

8. LSZH, OFNP, OFNR cable jacket.

9. Mechanical performance: IEC 61754-20 standard.

10. RoHS and REACH materials compliant.

Connector Types

Type	Reference	Note
LC	IEC 61754-20	Single mode	UPC: Blue connectors , White boots
		Multimode	UPC: Grey or Aqua Connectors , White boots

LSZH Switch Polarity Duplex LC Uniboot For Fiber Optic Patch Cord

Patch cord versions

Jumper tolerance requirement Jumper tolerance requirement
Overall length (L) (M)	length of tolerance(CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Product Tags:

Duplex LC Uniboot

LSZH LC Uniboot

LSZH Switch Polarity
